STEEL COIL LIFTING TOOL(“C”TYPE)

■ Used for horizontalifting the steel coil.

■ Select type “A”with working load 3.2T,and type"B"for working load more than 3.2T.

WLL Width of the steel coil lnner Dia of the steel A B C D E H R
(t) (mm ) (mm ) (mm) (mm) (mm) mm) (mm) (mm) (mm)
3.2 ≤300 ≥400 300 590 155 845 250 430 50
3.2 350-500 ≥400 500 725 155 924 250 450 50
5 750-900 ≥400 900 1225 200 1144 324 500 60
5 900-1100 ≥500 1100 1450 200 1331 318 600 60
5 1100-1300 ≥500 1300 1670 200 1332 375 600 60
10 750-900 ≥500 900 1290 300 1555 435 650 90
10 900-1120 ≥500 1120 1555 300 1767 477 850 90
10 1100-1300 ≥500 1300 1758 300 1722 478 750 90
10 1300-1500 ≥500 1500 1955 300 1854 467 850 90
16 900-1100 ≥600 110 1540 310 1850 467 850 90
16 1100-1250 ≥600 1250 1710 310 1871 533 850 90
25 900-1100 ≥600 1100 1570 370 1982 633 860 110
25 1100-1300 ≥700 1300 1810 370 2058 716 860 110
32 1400-1660 ≥700 1660 2240 550 2450 700 850 130
GEAR RACK DRIVE ELECTRIC LIFTING TO0L FOR HORIZONTAL STEEL COIL

■ Composed of the liting eye,clamp legs,clamp leg drive system,electric and electric control systems,cable drum,etc.
■ With features of compact structure,less weight,accurately clamp,high effciency,good applicabiity,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading fortransportation
■ Customer design is available.

WLL Steel coil Parameters Opening degree(A) Max.Dimension(mm) Limit Device Remark
t D L B H
10
InnerDia. φ508 Outer Dia φ2150		 300~2000 1000 2900 720 2950
Limited by travel switch,Limited by optoelectronic switch
Max.temperature:600℃ Maxtemperature:80℃
20 300~2000 1000 2900 720 2950
30 300~2000 1000 2900 720 2950
40 300~2000 1000 2900 720 2950
LEAD SCREW DRIVE ELECTRIC LIFTING TO0L FOR HORIZONTAL STEEL COIL

■ Composed of the lifting eye,clamp legs,clamp leg drive system,electric andelectic control systems,cable drum,etc.
■ With features of compact structure,less weight,accurately clamp,high efficiency,good applicability,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading for transportation.
■ Customer designis available

WLL Steel coil Parameters Opening degree(A) Max.Dimension(mm) Limit Device Remark
t D L B H
10
InnerDia. φ508 Outer Dia φ2150		 300~2000 1000 2900 1070 2750
Limited by travel switch,Limited by optoelectronic switch
Max.temperature:600℃ Maxtemperature:80℃
20 300~2000 1000 2900 1070 2750
30 300~2000 1000 2900 1070 2750
40 300~2000 1000 2900 1070 2750

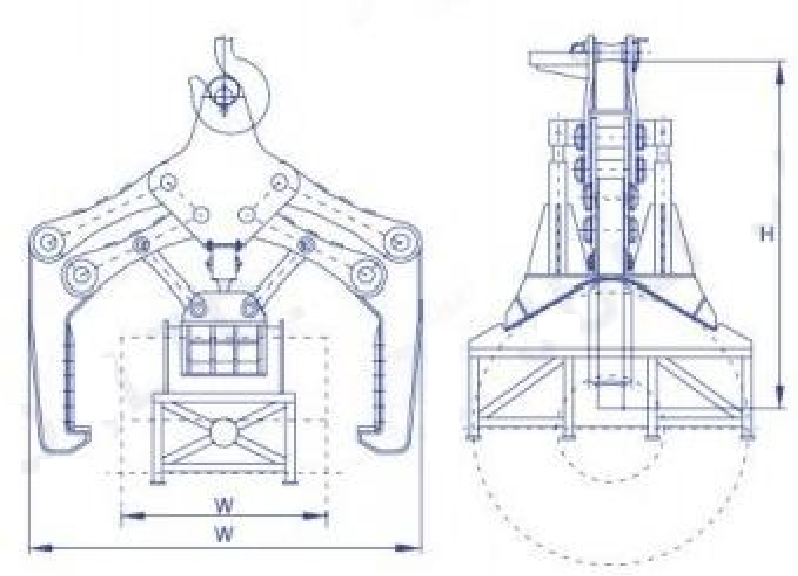

MECHANICAL CLAMP FOR HORIZONTAL STEEL COIL

■ With features of compact structure,less weight,accurately clamp,high efficiency,good applicability,advanced technology,easy to maintenance.
■ Widely used in carrying horizontal steel coil,stacking in dock warehouse,loading and unloading for transportation.Customer design is available.

WLL Width of the Inner Dia.of Outer Dia.of the steel coil Max.Dimension(mm)
（t） steel coil the steel coil W H
20 930-1250 φ580 φ1050-φ1280 2400 2600
35 900-1450 φ762 φ1500-φ1950 2700 3000
