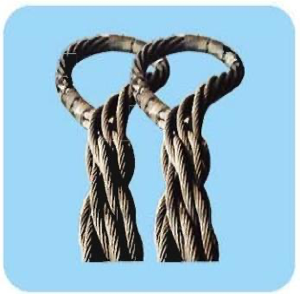

Special-made steel wire rope slings
| Nominal diameter (mm) | Diameter of the core rope (mm) | Diameter of the outer layer rope (mm) | Breaking load (KN) | Approximate weight (kg/m) |
|---|---|---|---|---|
| 100 | 32 | 36 | 3985 | 32.51 |
| 116 | 36 | 44 | 5202 | 42.38 |
| 128 | 40 | 48 | 6376 | 51.97 |
| 140 | 44 | 52 | 7670 | 62.53 |
| 152 | 48 | 56 | 9084 | 74.07 |
| 164 | 52 | 60 | 10618 | 86.59 |
| 176 | 56 | 64 | 12272 | 100.1 |
| 188 | 60 | 68 | 14046 | 114.58 |

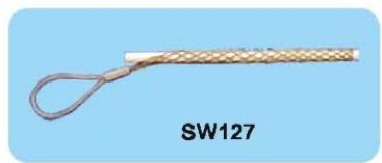

Cable mesh sleeve
| Diameter range of wire strands (mm) | Rated load (kg) | Number of sub-ropes | Diameter of the end rope (mm) |
|---|---|---|---|
| 19-35 | 500 | 15 | φ8 |
| 20-40 | 800 | 21 | φ8 |
| 25-50 | 1000 | 24 | φ9 |
| 38-60 | 1500 | 21 | φ9 |
| 50-75 | 2000 | 32 | φ10 |
| 75-100 | 2500 | 45 | φ10 |

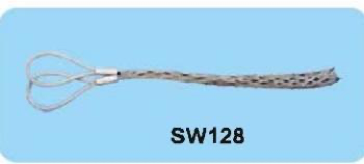

Double cable mesh sleeve
| Diameter range of wire strands (mm) | Rated load (kg) | Number of sub-ropes | Diameter of the end rope (mm) |
|---|---|---|---|
| 19-35 | 500 | 15 | φ6 |
| 20-40 | 800 | 21 | φ6 |
| 25-50 | 1000 | 24 | φ7 |
| 38-60 | 1500 | 21 | φ7 |
| 50-75 | 2000 | 32 | φ8 |
| 75-100 | 2500 | 45 | φ8 |
