Joint less rope loop rigging

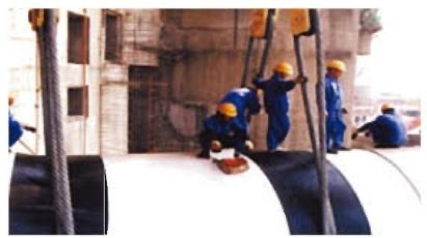

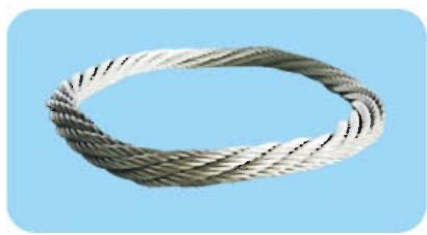

The joint less rope loop rigging is a ring-shaped rigging woven through the most advanced specialized winding equipment in the world and by means of a special process. It features good flexibility, high strength, and convenient use, and is especially suitable for hoisting projects with limited space or for extra-large hoisting projects.
The breaking loads of the join tless rope loop rigging vary depending on the specifications of the sub-ropes used. The breaking load of the rigging can be calculated according to the structure of the wire rope required by the customer.

Nominal diameter Weight per meter Minimum breaking force Single working load Double working load Triple working load
(mm) （kg） (KN) (KN) (KN) (KN)
10 0.21 60 10 18 14
12 0.35 100 16 30 20
16 0.59 180 30 56 40
19 0.84 240 40 74 56
23 1.51 380 63 117 88
29 2.36 480 80 148 113
34 2.86 600 100 185 141
40 3.99 900 150 278 212
46 6.02 1200 200 370 282
54 7.63 1500 250 463 353
60 9.45 2000 320 592 451
67 11.41 2400 400 740 564
75 13.58 3000 500 925 705
80 15.96 3600 600 1110 850
87 18.48 4200 700 1300 990
95 24.15 4800 800 1480 1130
100 27.3 5880 980 1810 1380
110 30.59 6900 1150 2130 1620
118 41.58 7800 1300 2410 1830
135 46.9 10200 1700 3100 2400
148 55.79 12000 2000 3700 2800
160 65.52 14400 2400 4400 3400
172 76.3 16800 2800 5200 4000
184 89.6 18000 3000 5500 4200
196 102.2 20400 3400 6300 4800
