Ultra - High Molecular Weight Dyneema Rope

Nominal Diameter (m) Linear Impact Strength（N） Minimum Breaking Force（daN）
8 35 5900
10 56 9250
12 84 13800
14 106 17100
16 132 21200
18 190 30000
20 215 33500
22 288 44500
24 326 49000
26 366 53200
32 688 85000
36 700 100000
40 886 125000
44 1070 148000
48 1296 177000
52 1540 210700

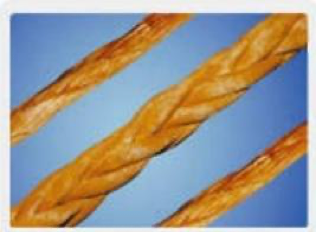

High - Strength Dyneema Marine Rope

Manufactured from imported Dyneema® material, this rope offers equivalent strength to steel cables of the same diameter while weighing only 15% of steel cables.
Key Features:
Exceptional Tensile Fatigue Strength: 1000 times that of steel and nylon ropes.
Low Elongation at Break.
Superior UV and Chemical Resistance.
Buoyant Design: Specific gravity lower than water, enabling it to float.

Diameter Linear Density Minimum Breaking Strength
(mm） Standard（Ktex） Deviation （%） Plain - Ended Rope Eye Type Rope
6 23 ±10 36.7 33
8 40 ±10 65.3 58.7
10 61 ±8 102 92
12 87 ±8 147 132
14 117 ±8 200 180
16 151 ±5 230 235
18 190 ±5 310 283
20 232 ±5 380 340
22 281 ±5 450 400
24 331 ±5 520 470
26 384 ±5 600 540
28 445 ±5 680 610
30 506 ±5 770 690
32 575 ±5 870 780
34 648 ±5 960 860
36 720 ±5 1040 940
38 798 ±5 1160 1040
40 881 ±5 1260 1130
44 1060 ±5 1460 1310
48 1250 ±5 1700 1530
52 1460 ±5 1970 1770
56 1690 ±5 2260 2030
60 1930 ±5 2530 2280

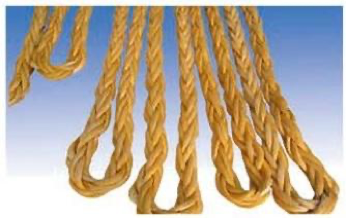

High - Strength Eight - Strand and Twelve - Strand Dyneema® Rope

High - Strength Eight - Strand and Twelve - Strand Dyneema® Rope
Braided from imported Dyneema® material, this rope offers equivalent strength to steel cables of the same diameter while weighing only 15% of steel cables.
Key Features:
Exceptional Tensile Fatigue Strength: 1000 times that of steel and nylon ropes.
Low Elongation at Break.
Superior UV and Chemical Resistance.
Buoyant Design: Specific gravity lower than water, enabling it to float.

Diameter Linear Density Minimum Breaking Strength
(mm） Standard（Ktex） Deviation （%） Plain - Ended Rope Eye Type Rope
20 232 ±10 380 340
22 281 ±10 450 400
24 331 ±8 520 470
26 384 ±8 600 540
28 445 ±8 680 610
30 506 ±5 770 690
32 575 ±5 870 780
34 648 ±5 960 860
36 720 ±5 1040 940
38 798 ±5 1160 1040
40 881 ±5 1260 1130
44 1060 ±5 1460 1310
48 1250 ±5 1700 1530
52 1460 ±5 1970 1770
56 1690 ±5 2260 2030
60 1930 ±5 2530 2280
64 2200 ±5 2840 2560
68 2480 ±5 3170 2850
72 2780 ±5 3520 3170
76 3090 ±5 3890 3500
80 3430 ±5 4300 3870
88 4170 ±5 5200 4680
96 4970 ±5 6180 5560
104 5800 ±5 7180 6470
112 6730 ±5 8280 7460
120 7720 ±5 9440 8500
128 8790 ±5 13670 9610
136 9920 ±5 11930 10750
140 10510 ±5 12560 11320
